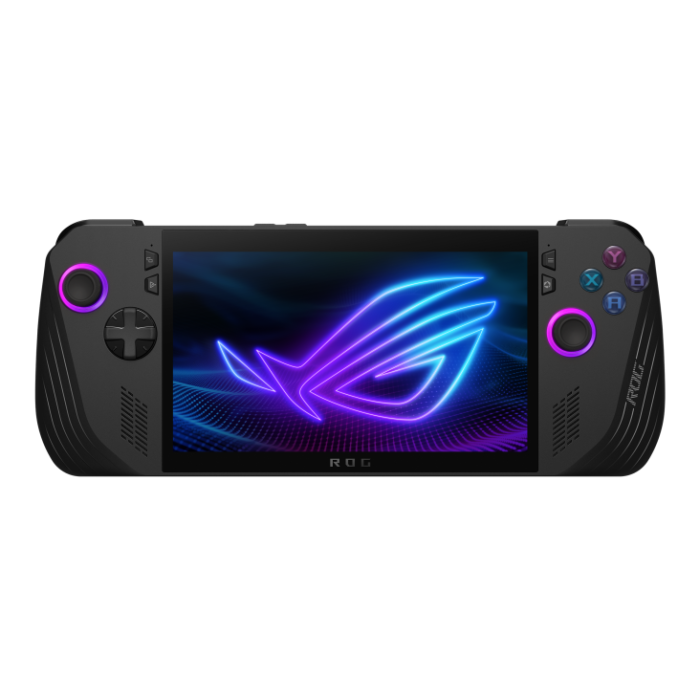

The Asus RC71-ROG Ally X Gaming Handheld is a powerful, portable gaming device designed for serious gamers. With a sleek black design, high-performance specs, and intuitive controls, it delivers smooth and immersive gameplay at home or on the move.
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.)
Features & Specifications:
Part No -
90NV00F1-M00090
Model Name -
RC71-ROGALLYX
EAN Code -
4.71139E+12
UPC Code -
1.97106E+11
WEEE -
0.967
BASE UNIT -
VSNV00F1-BU1000
Marketing Name -
ROG Ally
Color -
Black
Dimension (W x D x H) -
28.0 x 11.1 x 2.47 ~ 3.69 cm (11.02" x 4.37" x 0.97" ~ 1.45")
Weight -
678 g (1.49 lbs)
Processor -
AMD Ryzen™ Z1 Extreme Processor ("Zen4" architecture with 4nm process, 8-core /16-threads, 24MB total cache, up to 5.10 Ghz boost)
CPU Wattage -
TDP: 9-30W
Chipset -
N/A
Graphic Memory -
N/A
IGPU -
AMD Radeon™ Graphics (AMD RDNA™ 3, 12 CUs, up to 2.7 GHz, up to 8.6 Teraflops)
Panel Size -
7-inch
Resolution -
FHD (1920 x 1080) 16:9
Refresh Rate -
120Hz
Response Time (G2G) -
7ms
Glass -
Gorilla® Glass Victus™
Touch Screen -
Touch Screen (10-point multi-touch)
Viewing Angle -
85/85/85/85
Panel Tech -
IPS-level
Brightness -
500nits
Contrast -
1200:01:00
NTSC % -
72%
SRGB % -
100%
Adobe % -
75.35%
Anti glare -
glossy display
Adaptive-Sync technology -
FreeSync Premium
Pantone -
N/A
Support Dolby Vision HDR -
N/A
Glass -
Gorilla® Glass Victus™
On board memory -
12GB*2 LPDDR5 on board
Total System Memory -
LPDDR5X
24GB
Memory Slot -
N/A
Memory Max. -
16GB
Multi-channel memory technology -
Support dual channel memory
System Storage Installed -
1TB PCIe® 4.0 NVMe™ M.2 SSD (2280)
M.2 slots support either SATA or NVMe -
1
M.2 SSD Support List -
M.2 2280 1TB SSD
M.2 2280 512GB SSD
LAN -
N/A
On board Wireless -
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.2 (*Bluetooth® version may change with OS version different.)
I/O Ports -
1x Type C support USB 4 (Thunderbolt™ 4 compliance, DisplayPort™ 1.4 with Freesync support, Power Delivery 3.0)
1x USB 3.2 Gen 2 Type-C support DisplayPort™ / power delivery
1x UHS-II microSD card reader (supports SD, SDXC and SDHC)
Display output -
N/A
Audio -
1x 3.5mm Combo Audio Jack
Mic -
Built-in array microphone
Aura Sync -
Yes
Speakers -
2-speaker system with Smart Amplifier Technology
Audio Tech -
AI noise-canceling technology
Dolby Atmos
Hi-Res certification (for headphone)
Smart Amp Technology
Operating System -
Windows 11 Home
Antivirus -
N/A
Xbox Game Pass -
Xbox Game Pass Ultimate_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass Ultimate. Eligible markets are determined at activation. Game catalog varies by region, device, and time.)
Security -
Built-in Fingerprint Sensor
Microsoft Pluton security processor
Battery -
80WHrs, 4S1P, 4-cell Li-ion
Power -
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
Control and Input -
2 x assignable grip buttons
A B X Y buttons
Armoury Crate button
Command Center button
D-pad
L & R Hall Effect analog triggers
L & R bumpers
Menu button
View button
Thumbsticks: 2 x full-size analog sticks
Haptics: HD haptics
Gyro -
6-Axis IMU
Mic/Audio:
Built-in array microphone
Battery:
80WHrs, 4S1P, 4-cell Li-ion
Power:
TYPE-C, 65W AC Adapter, Output: 20V DC, 3.25A, 65W, Input: 100~240V AC 50/60Hz universal
