| Part No |
90NR0JA1-M002N0 |
| Sales Model Name |
GA605WV-AI-OLED9132G |
| EAN Code |
4711387678022 |
| UPC Code |
197105678026 |
| WEEE |
2.586 |
| BASE UNIT |
VSNR0JA1-BU1010 |
| |
|
| Marketing Name |

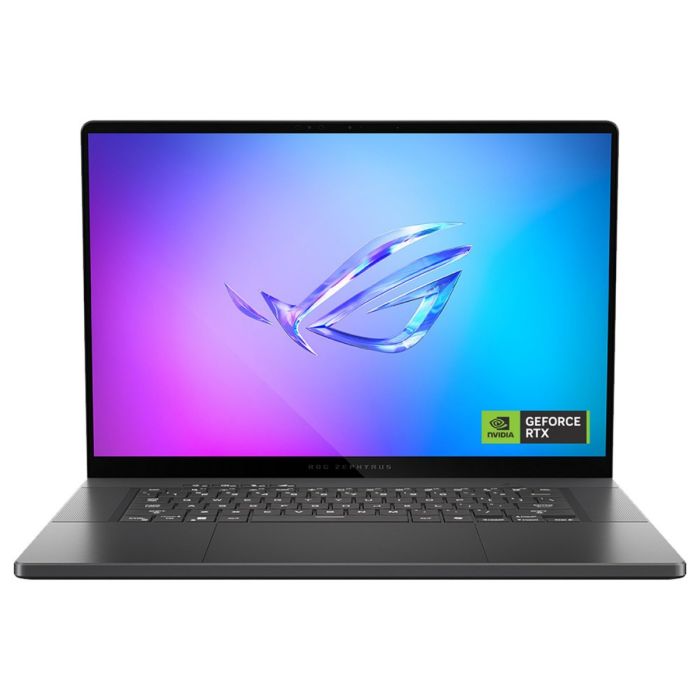

ROG Zephyrus G16 |
| Operating System |
Windows 11 Home |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Color |
Eclipse Gray |
| Dimension (W x D x H) |
35.4 x 24.6 x 1.49 ~ 1.64 cm (13.94" x 9.69" x 0.59" ~ 0.65") |
| Weight |
1.85 Kg (4.08 lbs) |
| Processor |
AMD Ryzen™ AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12 cores, 24 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset |
N/A |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 4060 Laptop GPU (233 AI TOPs) |
| Graphic Wattage |
ROG Boost: 1940MHz* at 100W (1890MHz Boost Clock+50MHz OC, 85W+15W Dynamic Boost) |
| Graphic Memory |
8GB GDDR6 |
| Neural Processor |
AMD XDNA™ NPU up to 50TOPS |
| Panel Size |
16-inch |
| Resolution |
2.5K (2560 x 1600, WQXGA) 16:10 aspect ratio |
| Refresh Rate |
240Hz |
| Response Time (G2G) |
0.2ms |
| Viewing Angle |
89/89/89/89 |
| Panel Tech |
OLED |
| Brightness |
500 nits |
| Contrast Ratio |
1,000,000:1 |
| DCI-P3 % |
100% |
| Glare |
Glossy display |
| Adaptive-Sync technology |
G-Sync / Adaptive-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula Display |
| Support Dolby Vision HDR |
Yes |
| On board memory |
16GB*2 LPDDR5X on board |
| Total System Memory |
LPDDR5X 32GB |
| Memory Slot |
N/A |
| Memory Max. |
32GB |
| Multi-channel memory technology |
Support dual channel memory |
| Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
1TB M.2 NVMe PCIe 4.0 SSD
2TB M.2 NVMe PCIe 4.0 SSD |
| Expansion Slot (includes used) |
2x M.2 PCIe |
| LAN |
N/A |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2+Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x Type-C USB 4 with support for DisplayPort™ / power delivery (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery (data speed up to 10Gbps) 2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x card reader (SD Card) (SD Express 7.0) |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
1080P FHD IR Camera for Windows Hello |
| Mic |
Built-in 3-microphone array |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync |
Yes |
| Touchpad |
Touchpad N/A |
| Speakers |
4-speaker (dual force woofer) system with Smart Amplifier Technology, 2 Tweeters |
| Audio |
1x 3.5mm Combo Audio Jack Built-in 3-microphone array |
| Audio Tech |
AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Smart Amp Technology |
| Security |
BIOS Administrator Password and User Password Protection Pluton Security Processor Secured-core PC (Level 3) Trusted Platform Module (Firmware TPM) |
| Antivirus |
McAfee® 30 days free trial |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100-240V AC, 50/60Hz universal |
| Xbox Game Pass |
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
?.? |
