| Part No |
90NR0NJ7-M000D0 |
| Sales Model Name |
G614PR-RV003W |
| EAN Code |
4711636586535 |
| UPC Code |
199291586536 |
| WEEE |
3.223 |
| BASE UNIT |
VSNR0NJ7-BU2000 |
| |
|
| Marketing Name |

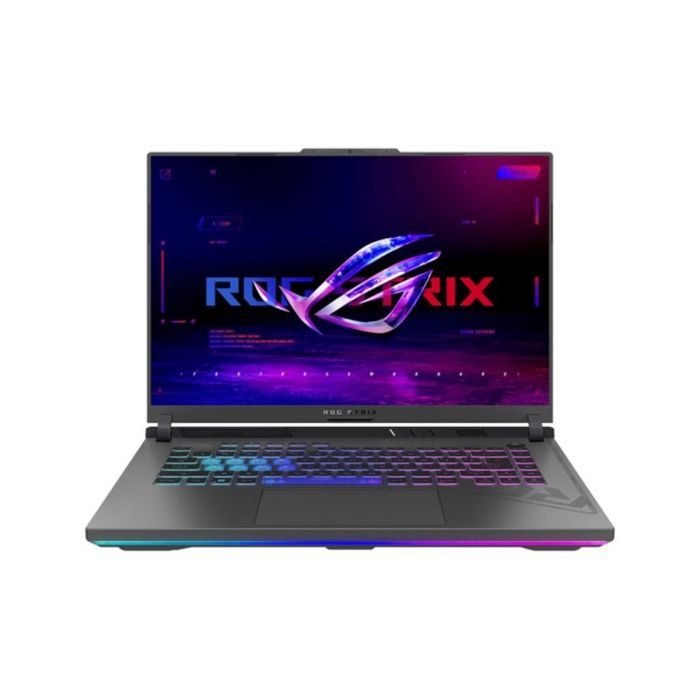

ROG Strix G16 |
| Operating System |
Windows 11 Home |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Exclusive subscription offers |
3-Month Google AI Plus Subscription 6-Month Dropbox 500GB Subscription 1-Year ASUS Secure Auto-Backup 200GB Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Color |
Eclipse Gray |
| LCD cover-material |
Texture plastic |
| Top case-material |
Aluminum |
| Bottom case-material |
Texture plastic |
| Dimension (W x D x H) |
35.4 x 26.4 x 2.26 ~ 3.04 cm (13.94" x 10.39" x 0.89" ~ 1.20") |
| Weight |
2.50 Kg (5.51 lbs) |
| Processor |
AMD Ryzen™ 9 8940HX Processor 2.4GHz (80MB Cache, up to 5.3GHz, 16 cores, 32 Threads) |
| Chipset |
N/A |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU |
| Graphic Wattage |
ROG Boost: 1565MHz* at 140W (1515MHz Boost Clock+50MHz OC, 115W+25W Dynamic Boost) |
| Graphic Memory |
12GB GDDR7 |
| Panel Size |
16-inch |
| Resolution |
FHD+ 16:10 (1920 x 1200, WUXGA) |
| Refresh Rate |
165Hz |
| Response Time (G2G) |
3ms |
| Viewing Angle |
170 |
| Panel Tech |
IPS-level |
| Brightness |
300nits |
| Contrast Ratio |
1000:1 |
| SRGB % |
100% |
| Surface texture of display |
Anti-glare(AG) display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
N/A |
| Support Dolby Vision HDR |
Yes |
| Thermal Feature |
ROG intelligent cooling |
| On board memory |
N/A |
| DIMM Memory |
16GB DDR5-5200 SO-DIMM *2 The memory speed of the systems vary by CPU SPEC |
| Total System Memory |
DDR5 32GB |
| Memory Slot |
2x SO-DIMM slots |
| Memory Max. |
64GB |
| Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
1TB /2TB G4x4 Value PCIe SSD |
| Expansion Slot (includes used) |
2x DDR5 SO-DIMM slots 2x M.2 PCIe |
| LAN |
10/100/1000 Mbps |
| Wireless |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x Type-C USB 4 with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 40Gbps) 2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x Type-C USB 4 with support for DisplayPort™ / G-SYNC (data speed up to 40Gbps) 1x RJ45 LAN port |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
1080P FHD camera |
| Mic |
Built-in array microphone |
| Keyboard Type |
Backlit Chiclet Keyboard 4-Zone RGB With Copilot key
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Aura Sync |
Yes |
| Touchpad |
Touchpad N/A |
| Speakers |
2-speaker system with Smart Amplifier Technology |
| Audio |
1x 3.5mm Combo Audio Jack Built-in array microphone |
| Audio Tech |
AI noise-canceling technology Smart Amp Technology Dolby Atmos Hi-Res certification (for headphone) |
| Security |
Trusted Platform Module (Firmware TPM) BIOS Administrator Password and User Password Protection |
| Antivirus |
McAfee® 30 days free trial |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Charger included |
Included |
| Power |
ø6.0, 280W AC Adapter, Output: 20V DC, 14A, 280W, Input: 100~240C AC 50/60Hz universal |
| Required charging power |
Min: 45W Max: 100W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Xbox Game Pass |
XBOX Game Pass Premium_2 months (*Terms and exclusions apply. Offer only available in eligible markets for XBOX Game Pass Premium. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
9.9 |
| Reparability Index (for BNL) |
9.5 |
