| Part No |
90NR0LZ6-M00BD0 |
| Sales Model Name |
GU605CR-QR216W |
| EAN Code |
4711387948354 |
| UPC Code |
197105948358 |
| WEEE |
2.893 |
| BASE UNIT |
VSNR0LZ6-BU1001 |
| Marketing Name |

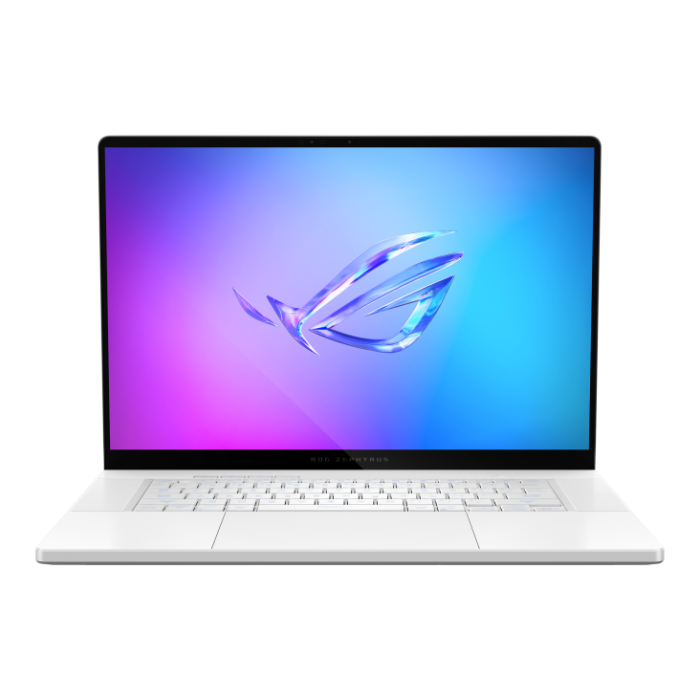

ROG Zephyrus G16 |
| Operating System |
Windows 11 Home |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Color |
Platinum White |
| Dimension (W x D x H) |
35.4 x 24.6 x 1.49 ~ 1.74 cm (13.94" x 9.69" x 0.59" ~ 0.69") |
| Weight |
1.95 Kg (4.30 lbs) |
| Processor |
Intel® Core™ Ultra 9 Processor 285H 2.9 GHz (24MB Cache, up to 5.4 GHz, 16 cores, 16 Threads); Intel® AI Boost NPU up to 13TOPS |
| Chipset |
N/A |
| Intergrated GPU |
Intel® Arc™ Graphics |
| Discrete/Optimus |
MUX Switch + NVIDIA® Advanced Optimus |
| Graphic |
NVIDIA® GeForce RTX™ 5070 Ti Laptop GPU |
| Graphic Wattage |
ROG Boost: 1565MHz* at 115W (1515MHz Boost Clock+50MHz OC, 95W+20W Dynamic Boost) |
| Graphic Memory |
12GB GDDR7 |
| Neural Processor |
Intel® AI Boost NPU up to 13TOPS |
| Panel Size |
16-inch |
| Resolution |
2.5K (2560 x 1600, WQXGA) OLED 16:10 aspect ratio |
| Refresh Rate |
240Hz |
| Viewing Angle |
89/89/89/89 |
| Panel Tech |
OLED |
| Brightness |
500 nits (Peak) |
| Contrast Ratio |
1,000,000:1 |
| DCI-P3 % |
100% |
| Glare |
Glossy display |
| Adaptive-Sync technology |
G-Sync |
| Pantone |
Pantone Validated |
| Nebula Display |
ROG Nebula Display |
| Support Dolby Vision HDR |
Yes |
| On board memory |
64GB LPDDR5X 7467 on board(Actual memory speeds may vary by CPU configuration.) |
| Total System Memory |
LPDDR5X 64GB |
| Memory Slot |
No expansion possible |
| Memory Max. |
64GB |
| Multi-channel memory technology |
Support dual channel memory technology |
| Storage |
1TB PCIe® 4.0 NVMe™ M.2 SSD |
| M.2 slots support either SATA or NVMe |
2 |
| M.2 SSD Support List |
1TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)
2TB M.2 NVMe™ PCIe® G4x4 Performance SSD (ACC/TW only)
1TB M.2 NVMe™ PCIe® G4x4 Value SSD
2TB M.2 NVMe™ PCIe® G4x4 Value SSD |
| Expansion Slot (includes used) |
2x M.2 PCIe |
| LAN |
N/A |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| I/O Ports |
1x Thunderbolt™ 4 with support for DisplayPort™ / power delivery (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for DisplayPort™ / power delivery / G-SYNC (data speed up to 10Gbps) 2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x card reader (SD) (UHS-II, 312MB/s) |
| Display output |
1x HDMI 2.1 FRL |
| Camera |
1080P FHD IR Camera for Windows Hello |
| Mic |
Built-in 3-microphone array |
| Keyboard Type |
Backlit Chiclet Keyboard 1-Zone RGB |
| Aura Sync |
Yes |
| Touchpad |
Touchpad N/A |
| Speakers |
4-speaker (dual-force woofer) system with Smart Amplifier Technology, 2 Tweeters |
| Audio |
1x 3.5mm Combo Audio Jack Built-in 3-microphone array |
| Audio Tech |
AI noise-canceling technology Dolby Atmos Hi-Res certification (for headphone) Smart Amp Technology |
| Security |
BIOS Administrator Password and User Password Protection Trusted Platform Module (Firmware TPM) |
| Antivirus |
McAfee® 30 days free trial |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Fast charging |
Recharge from 0-50% in 30 minutes |
| Power |
Rectangle Conn, 240W AC Adapter, Output: 20V DC, 12A, 240W, Input: 100~240C AC 50/60Hz universal |
| Required charging power |
Min: 45W Max: 100W |
| Xbox Game Pass |
Xbox Game Pass for PC_3 months (*Terms and exclusions apply. Offer only available in eligible markets for Xbox Game Pass for PC. Eligible markets are determined at activation. Game catalog varies by region, device, and time.) |
| Included in the Box |
TYPE-C, 100W AC Adapter, Output: 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal ROG Zephyrus G16 Sleeve (2024) |
| Ecolabels & Compliances |
N/A |
| Reparability Index (for France) |
9.3 |
