| Network Standard |
IEEE 802.11a |
| |
IEEE 802.11b |
| |
IEEE 802.11g |
| |
WiFi 4 (802.11n) |
| |
WiFi 5 (802.11ac) |
| |
WiFi 6 (802.11ax) |
| |
WiFi 6E (802.11ax) |
| |
WiFi 7 (802.11be) |
| |
IPv4 |
| |
IPv6 |
| Product Segment |
BE25000 ultimate BE performance: 1376+5764+5764+11529 Mbps |
| WiFi Data Rate |
WiFi 7 (802.11be) (2.4GHz): up to 1376 Mbps |
| |
WiFi 7 (802.11be) (5GHz-1): up to 5764 Mbps |
| |
WiFi 7 (802.11be) (5GHz-2): up to 5764 Mbps |
| |
WiFi 7 (802.11be) (6GHz): up to 11529 Mbps |
| Antenna |
2.4GHz 4x4 |
| |
5GHz-1 4x4 |
| |
5GHz-2 4x4 |
| |
6GHz 4x4 |
| Memory |
RAM 2GB , Flash 256MB |
| Boosts Speed |
OFDMA (Orthogonal Frequency Division Multiple Access) |
| |
Beamforming: standard-based and universal |
| |
4096-QAM high data rate |
| |
20/40/80/160/320 MHz bandwidth |
| Operating Frequency |
2.4 GHz / 5 GHz / 6 GHz |
| |
2.4 GHz |
| |
5 GHz-1 |
| |
5 GHz-2 |
| |
6 GHz |
| Operating Mode |
Wireless Router Mode |
| |
AiMesh Node Mode |
| |
Access Point Mode |
| I/O Ports |
10G WAN/LAN x 1, 10G LAN x 1, 1G WAN/LANx 1, 1G LAN x2, USB 3.0 |
| Buttons |
Reset/ WPS/ Rocker Switch |
| LED Indicator |
Power x 1 |
| Power Supply |
AC Input : 110V~240V(50~60Hz) |
| |
DC Output : 19V with max. 3.42A current |
| Package Content |

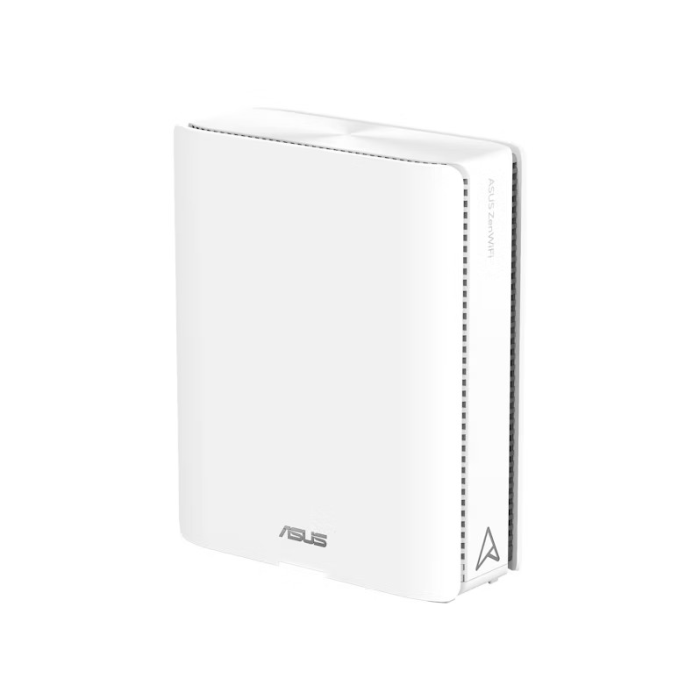

ZenWiFi BQ16 |
| |
RJ-45 cable |
| |
Power adapter |
| |
Warranty card |
| |
Quick start guide |
| Product Weight (g) |
1341g |
| Product Dimensions |
214*174.2*72 mm |
| AiMesh |
AiMesh |
| |
• Primary AiMesh Router |
| |
• AiMesh Node |
| Parental Control |
Allow you to block access to unwanted websites and apps. |
| |
Web & Apps Filters |
| |
Time Scheduling |
| |
Reward |
| |
Parental Control - Safe Browsing |
| |
Customized Internet Schedule |
| |
• Maximum Parental Control Profile : 64 |
| |
• Maximum Parental Control Content Filter Rule : 64 |
| Router APP |
APP: ASUS Router APP |
| Guest Network |
The Guest Network provides Internet connection for guests but restricts access to your local network. |
| |
Support Guest Network |
| |
• Maximum Guest Network Rule : 2.4G+5G/ 2.4G+5G+6G: 8 |
| |
Guest Network Connection Time Limit |
| |
Open system, WPA/WPA2-Personal/WPA3-Personal |
| Security |
AiProtection |
| |
VPN |
| |
WPA3 Enterprise, WPA3 Personal, WPA2 Enterprise , WPA2 Personal, WPA Personal, WPA Enterprise , WPS support |
| |
WPS |
| |
Let's Encrypt |
| |
DNS-over-TLS |
| |
SSH |
| |
Security Scan |
| |
Firewall |
| |
• Maximum Firewall Keyword Filter : 64 |
| |
• Maximum Firewall Network Service Filter : 32 |
| |
• Maximum Firewall URL Filter : 64 |
| AiProtection |
AiProtection Pro |
| |
• Router Security Assessment |
| |
• Malicious Site Blocking |
| |
• Two-Way IPS |
| |
• Infected Device Prevention and Blocking |
| VPN |
Instant Guard |
| |
VPN Client L2TP |
| |
VPN Client Open VPN |
| |
VPN Client PPTP |
| |
VPN Client WireGuard |
| |
VPN Server IPSec |
| |
VPN Server Open VPN |
| |
VPN Server PPTP |
| |
VPN Server WireGuard |
| |
VPN Fusion |
| Traffic Control |
Adaptive QoS |
| |
• Bandwidth Monitor |
| |
• Bandwidth Limiter |
| |
-- Maximum Bandwidth Limiter Rule : 32 |
| |
Traditional QoS |
| |
Traffic Monitor |
| |
• Real-time Traffic Monitor |
| |
• Wired Traffic Monitor |
| |
• Wireless Traffic Monitor |
| |
Traffic Analyzer |
| |
• Traffic Analysis Period : Daily, Weekly, Monthly |
| |
• Website History |
| WAN |
Internet Connection Type |
| |
• PPPoE |
| |
• PPTP |
| |
• L2TP |
| |
• Automatic IP |
| |
• Static IP |
| |
Dual WAN |
| |
4G / 5G Auto Mobile Tethering |
| |
Port Forwarding |
| |
• Maximum Port Forwarding Rule : 64 |
| |
Port Triggering |
| |
• Maximum Port Triggering Rule : 32 |
| |
DMZ |
| |
DDNS |
| LAN |
DHCP Server |
| |
IGMP Snooping |
| |
IPTV |
| |
LAN Link Aggregation |
| |
Manually Assign IP Address |
| |
Wake on LAN (WOL) |
| Wireless |
MU-MIMO |
| |
UTF-8 SSID |
| |
WiFi MAC Address Filter |
| |
• Maximum MAC Filters : 64 |
| |
Wireless Scheduler |
| |
Airtime Fairness |
| |
Universal Beamforming |
| |
Explicit Beamforming |
| USB application |
4G / 5G Auto Mobile Tethering |
| |
HDD Hibernation |
| |
AiCloud |
| |
Download Master |
| |
AiDisk |
| |
Media Server |
| |
Time Machine |
| |
Samba Server |
| |
FTP Server |
| Administration |
Feedback System |
| |
System Log |
| |
New Device Connect Notification |
| |
Login Captcha |
| |
Connection Diagnosis |
| |
Auto Firmware Update |
