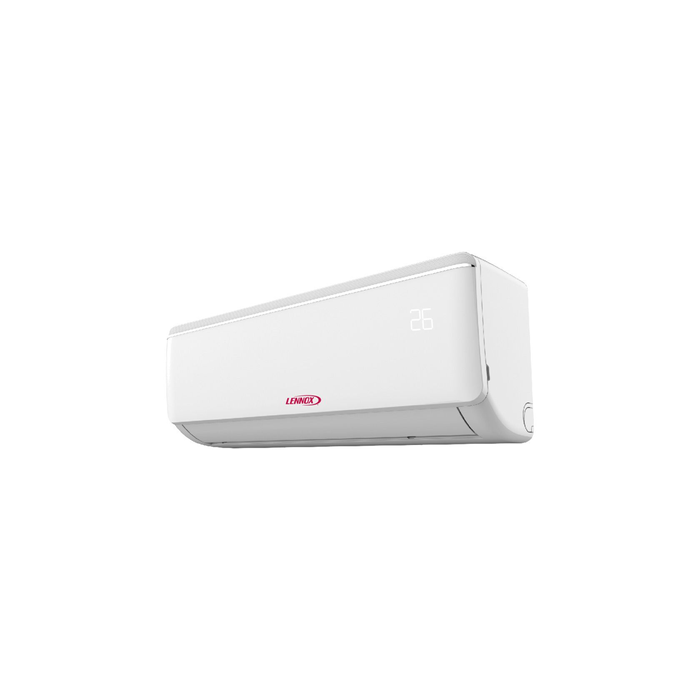

Lennox 2.5TR Cooling Only Inverter AC

No Related Posts

More Information

Product Name

Lennox 2.5 TR- Cooling Only Wall Split AC Inverter

Price

QAR 2,999.00

Featured Attribute Grid

2.5 ton,Split AC,No

Department:

Home Appliances

Category:

Air Conditioners

Brand:

Lennox

Product Type:

Split AC

Tonnage:

2.5 ton

Cooling Capacity:

25500 BTU

Features & Specifications:

Model No.	HLXACLXTWS30I
Type	Cooling Only
Climate type	T3
Power supply	220-240V~1 Phase/ 50Hz
Voltage Range	V	165~265
Refrigerant	kg	R410A/2.45
		6.00
Cooling T1
Rated capacity	Btu/h	30000（6142~35314）
Rated capacity	W	8792（1800~10350）
EER	Btu/h/W;	11.50
EER	W/W	3.37
Rated power input	W	2608（440~4000）
Rated current	A	11.6（2.9~19.0）
Max power input	W	4000
Max current	A	19.0
Cooling T3
Rated capacity	Btu/h	25500（6142~35314）
Rated capacity	W	7474（1800~10350）
EER	Btu/h/W;	8.50
EER	W/W	2.49
Rated power input	W	3000（440~4000）
Rated current	A	13.3（2.9~19.0）
Max power input	W	4000
Max current	A	19.0
Annual energy consumption	kwh/year	7042
Pressure
High(DP)	MPa	4.5
Low(SP)	MPa	1.9
Indoor noise level at cooling
Super	dB(A)	55
High	dB(A)	51
Med.	dB(A)	46
Low	dB(A)	40
Quite	dB(A)	38
Outdoor noise level	dB(A)	63
Net dimensions (W x Dx H)	Indoor	1186×340×258
	Outdoor	976×421×804
Packing dimensions (W x D x H)	Indoor	1265×420×337
	Outdoor （without piping）	1022×480×835
	Outdoor （with piping）	1022×480×835
Net weight
Indoor	Kg	19
Outdoor	Kg	50
Gross weight
Indoor	Kg	22
Outdoor （without piping）	Kg	55
Outdoor （with piping）	Kg	57
Stuffing qty	40'HQ （without piping）	105
	40'HQ （with piping）	105
Moisture removal	Liters/h	3.0
Compressor	Model	KTM240D43UMT
	Type	Rotary
	Brand	GMCC
Evaporator	Hydrophilic & Louver Fin; Innergroover tube type φ7
Condenser	Louver or Corrugated Fin; Innergroover tube type φ7
Expansion device	Capillary tube
Defrosting system	Microcomputer controlled reverse system
Fan System
Indoor fan type	Cross flow
Indoor fan motor	model	22001-000240 DC
	brand	WEILING/Tongde/Broad-ocean
Indoor fan speed H/M/L
Cooling	rpm	1400/1250/1050/850/800
Dry	rpm	850
Sleep	rpm	800/800
Indoor coil
a.Number of rows		3
b.Tube pitch(a)x row pitch(b)	mm	21×12.7
c.Fin spacing	mm	1.5
e.Tube outside dia.and type	mm	Φ7,innergroove tube
f.Coil length x height x width	mm	895×378×38.1
g.Number of circuits		7in 7 out
Outdoor fan type	Propeller
Outdoor fan motor	model	22001-000147 DC
	brand	Broad-ocean/Wolong
	rpm	850
Outdoor fan speed
Outdoor coil
a.Number of rows		3
b.Tube pitch(a)x row pitch(b)	mm	21×12.7
c.Fin spacing	mm	1.5
e.Tube outside dia.and type	mm	Φ7,innergroove tube
f.Coil length x height x width	mm	994×756×36.4
g.Number of circuits		5 in 1 out
Connections
Connecting Pipe
Gas	Inches	φ15.88(5/8")
Liquid	Inches	Φ6(1/4'')
Connecting Wiring	Size x Core number	4×0.75
DraiN.Age Pipe		O.D 16mm
Suitable area	m²	40~60
