| CAMERA |
|
| Image Sensor: |
1/2.8“ Progressive Scan CMOS Sensor |
| Lens: |
Focal Length: 6 mm ± 5%, 2.53 mm±5% |
| |
Aperture: F1.6 ± 10%, F1.6 ± 10% |
| |
Field of View: 66.5° (Diagonal), 57.3° (Horizontal), 31.7° (Vertical); |
| |
165.1° (Diagonal), 137.6° (Horizontal), 73.0° (Vertical) |
| Night Vision: |
850 nm IR LED (99 ft / 29.9 m), Color Night Vision |
| Day/Night Switch: |
IR-Cut Filter with Auto-Switching |
| Interface & Button: |
1× RJ45 (10M/100M) Ethernet Port |
| |
1× RESET Button |
| |
1× microSD Card Slot (Up to 512 GB) |
| VIDEO & AUDIO |
|
| Maximum Resolution: |
2K 3MP (2304 x 1296 px) + 2K 3MP (2304 x 1296 px) |
| Frame Rate: |
15 fps |
| Video Compression: |
H.264 |
| Live View: |
Yes |
| Image Enhancement: |
3DNR |
| |
WDR |
| Audio Input & Output: |
Built-in Microphone and Speaker |
| Audio Communication: |
Two-Way Audio with Noise Cancellation |
| Siren Volume: |
99 dB (Level measured at 4-inch/10-cm distance) |
| STORAGE |
|
| Local Storage: |
microSD Card Slot on Camera (Up to 512 GB) |
| Cloud Storage: |
Tapo Care Cloud Storage Services (Subscription required) |
| DETECTION and NOTIFICATIONS |
|
| AI Detection: |
Motion Detection |
| |
Person Detection |
| |
Pet Detection |
| |
Vehicle Detection |
| |
Line-Crossing Detection |
| |
Camera Tampering |
| Activity Zones: |
Yes |
| |
*Only works with Motion/Person/Pet/Vehicle Detection. |
| Output Notification : |
System Notification |
| |
System Notification with Snapshot (Tapo Care Services) |
| NETWORK |
|
| Network Connectivity: |
Connect via Wi-Fi or Ethernet |
| Wireless Connectivity: |
IEEE 802.11 b/g/n/ax, 2.4 GHz |
| Protocol: |
TCP/IP, DHCP, ICMP, DNS, NTP, HTTPS, TCP, UDP |
| Ethernet Port: |
Yes |
| RTSP: |
Yes |
| ONVIF: |
Yes |
| Transmission Rate: |
11b: 11 Mbps |
| |
11g: 54 Mbps |
| |
11n: 72.2 Mbps |
| |
11ax: 143.4 Mbps |
| SECURITY |
|
| |
On-Device Machine Learning |
| |
128-bit AES Encryption with SSL/TLS |
| |
WPA/WPA2-PSK/WPA3 |
| POWER |
|
| Power Source: |
12 V DC Power Adapter |
| Input Voltage: |
100-240 V, 50/60 Hz |
| Output Voltage: |
12 V, 1 A (DC Power) |
| DC Power Connector Size: |
Inside Ø: 2.1 mm |
| |
Outside Ø: 5.5 mm |
| Power Cord Length: |
3 m |
| Typical Power Consumption: |
5.3 W |
| Maximum Power Consumption: |
11.2 W |
| GENERAL |
|
| Smart Integration: |
Google Assistant, Amazon Alexa, Samsung SmartThings |
| Weather Resistance: |
IP66 |
| Mounting Options: |
Wall-Mounted |
| |
Eave-Mounted |
| |
Pole-Mounted |
| Operating Temperature: |
-30 ºC ~ 60 ºC (-22 °F ~ 140 °F ) |
| Storage Temperature: |
-40 ºC ~ 60 ºC (-40 °F ~ 140 °F) |
| Operating Humidity: |
10% ~ 90% RH, Non-condensing |
| Storage Humidity: |
0 ~ 90% RH, Non-condensing |
| Dimensions ( W x D x H ): |
4.51 × 6.28 × 5.99 in (114.57 × 159.55 × 152.1 mm) |
| Weight: |
17.32 oz / 491 g |
| Package Content: |

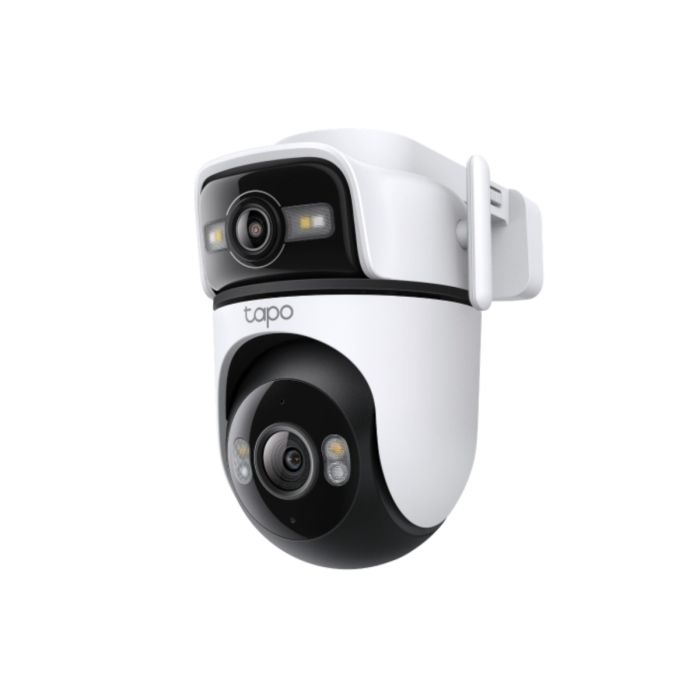

Tapo C545D Camera ×1 |
| |
Mounting Bracket ×1 |
| |
Mounting Template Sticker ×1 |
| |
Mounting Screws ×4 |
| |
Mounting Anchors ×4 |
| |
Waterproof Seal ×1 |
| |
Waterproof Cable Attachments ×1 |
| |
Power Adapter ×1 |
| |
Quick Start Guide |
