TP-Link SG3428X 24-Port Fibre Switch in Qatar

No Related Posts

More Information

Product Name

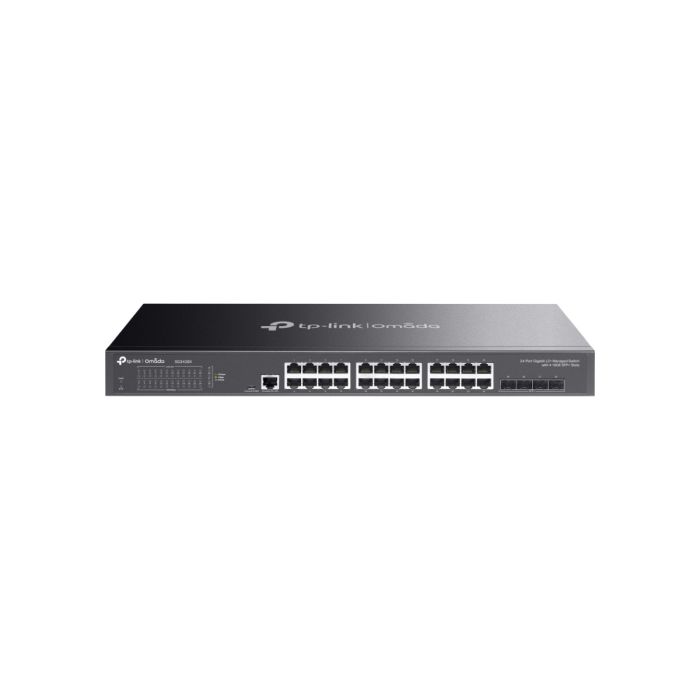

TP-Link 24 Port 1G Fibre Switch - SG3428X

Price

QAR 1,445.00

Order By Whatsapp

Yes

Department:

Smart Home - Networking & Security

Category:

Networking Devices

Brand:

TP-Link

Product Type:

Switches

Features & Specifications:

HARDWARE FEATURES
Interface	• 24× 10/100/1000 Mbps RJ45 Ports (Auto-Negotiation/Auto MDI/MDIX)
	• 4× 10G SFP+ Slots
	• 1× RJ45 Console Port
	• 1× Micro-USB Console Port
Fan Quantity	Fanless
Physical Security Lock	√
Power Supply	100-240 V AC~50/60 Hz
Dimensions ( W x D x H )	17.3×7.1×1.7 in (440×180×44 mm)
Mounting	Rack Mountable
Max. Power Consumption	23.6 W (110V/60Hz)
Max. Heat Dissipation	80.52 BTU/h (110 V/60 Hz)
PERFORMANCE
Switching Capacity	128 Gbps
Packet Forwarding Rate	95.23 Mpps
MAC Address Table	16 K
Packet Buffer Memory	12 Mbit
Jumbo Frame	9 KB
SOFTWARE FEATURES
Quality of Service	• 8 priority queues
	• 802.1p CoS/DSCP priority
	• Queue scheduling: SP (Strict Priority), WRR (Weighted Round Robin), SP+WRR
	• Bandwidth Control: Port/Flow-based Rating Limiting
	• Smoother Performance
	• Action for Flows: QoS remark (802.1P Remark, DSCP Remark)
L2 and L2+ Features	• 128 IP Interfaces: Support IPv4/IPv6 Interface
	• Static Routing: 48 IPv4/IPv6 Static Routes
	• Static ARP: 128 static entries
	• 512 ARP Entries
	• Proxy ARP
	• Gratuitous ARP
	• DHCP Server
	• DHCP Relay: DHCP Interface Relay, DHCP VLAN Relay
	• DHCP L2 Relay
	• Link Aggregation
	• Spanning Tree Protocol
	• Loopback Detection
	• 802.3x Flow Control
	• Mirroring
L2 Multicast	• Supports 1000 (IPv4, IPv6) IGMP groups
	• IGMP Snooping
	• IGMP Authentication
	• Multicast VLAN Registration (MVR)
	• MLD Snooping
	• Multicast Filtering: 256 profiles and 16 entries per profile
Advanced Features	• Automatic Device Discovery†
	• Batch Configuration†
	• Batch Firmware Upgrading†
	• Intelligent Network Monitoring†
	• Abnormal Event Warnings†
	• Unified Configuration†
	• Reboot Schedule†
ISP Features*:
	• L2PT (Layer 2 Protocol Tunneling)
	• Device Link Detect Protocol (DLDP)
	• PPPoE ID Insertion
	• ERPS
	• 802.3ah Ethernet Link OAM
	• DDM
	• sFlow
VLAN	• VLAN Group: Max 4K VLAN Groups
	• 802.1q Tagged VLAN
	• MAC VLAN: 30 Entries
	• Protocol VLAN: Protocol Template 16, Protocol VLAN 16
	• Private VLAN
	• GVRP
	• VLAN VPN: VLAN Mapping, VLAN Replace
	• Voice VLAN
Access Control List	• Time-based ACL
	• MAC ACL: Source MAC, Destination MAC, VLAN ID, User Priority, Ether Type
	• IP ACL: Source IP, Destination IP, Fragment, IP Protocol, TCP Flag, TCP/UDP Port, DSCP/IP TOS
	• Combined ACL
	• Packet Content ACL
	• IPv6 ACL
	• Policy: Mirroring, Redirect, Rate Limit, QoS Remark
	• ACL apply to Port/VLAN
	• IP-MAC-Port Binding
Management Features
Omada App	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management	• Omada Cloud-Based Controller
	• Omada Hardware Controller
	• Omada Software Controller
Cloud Access	Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning	Yes. Requiring the use of Omada Cloud-Based Controller.
Management Features	• Web-based GUI
	• Command Line Interface (CLI) through the console port, telnet
	• SNMP v1/v2c/v3: Trap/Inform, RMON (1,2,3,9 groups)
	• SDM Template
	• DHCP/BOOTP Client
	• 802.1ab LLDP/LLDP-MED
	• DHCP AutoInstall
	• Dual Image, Dual Configuration
	• CPU Monitoring
	• Cable Diagnostics
	• EEE
	• Password Recovery
	• SNTP
	• System Log
OTHERS
Certification	CE, FCC, RoHS
Package Content	• SG3428X Switch
	• Power Cord
	• Quick Installation Guide
	• Rackmount Kit
	• Rubber Feet
System Requirements	Microsoft® Windows® 98SE, NT, 2000, XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment	• Operating Temperature: 0–45 ℃ (32–113 ℉);
	• Storage Temperature: -40–70 ℃ (-40–158 ℉)
	• Operating Humidity: 10–90% RH non-condensing
	• Storage Humidity: 5–90% RH non-condensing
