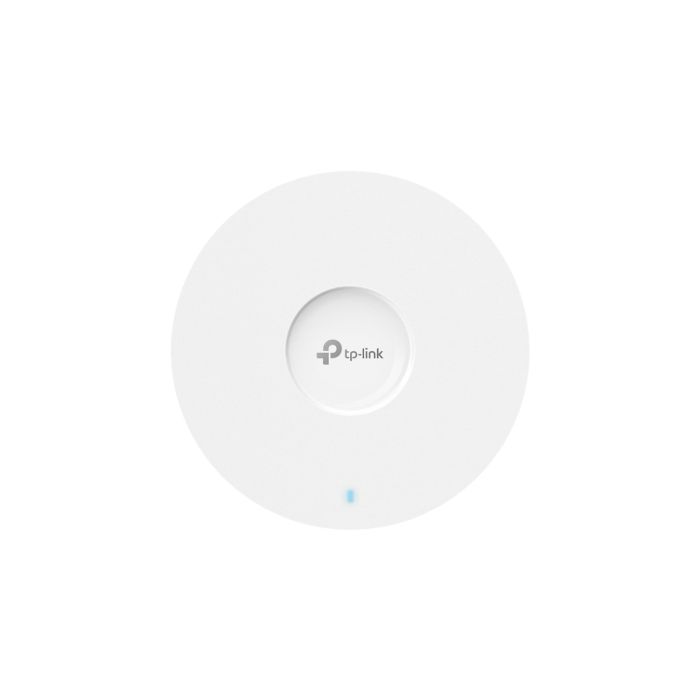

| TP-Link EAP772 — Full Specifications |
| BE9300 WiFi 7 Ceiling Mount Access Point |
| Wireless Performance |
| |
WiFi Standard: Wi-Fi 7 (IEEE 802.11be/ax/ac/n/g/b/a) |
| |
Speed (BE9300 Total Throughput): |
| |
6 GHz: 5760 Mbps |
| |
5 GHz: 2880 Mbps |
| |
2.4 GHz: 574 Mbps |
| |
Total Combined Speed: up to ~9.3 Gbps |
| |
Bands: Tri-band (2.4 GHz + 5 GHz + 6 GHz) |
| WiFi 7 Technologies |
| |
Multi-Link Operation (MLO) |
| |
4K-QAM modulation |
| |
Multi-RU (Resource Units) |
| |
OFDMA + MU-MIMO |
| |
320 MHz channel width support |
| |
Beamforming |
| |
Low latency optimization |
| Key Highlights |
| |
WiFi 7 BE9300 (up to 9.3 Gbps total speed) |
| |
Tri-band with dedicated 6 GHz band |
| |
2.5G PoE+ uplink (no bottleneck) |
| |
Advanced WiFi 7 features (MLO, 4K-QAM) |
| |
Enterprise-grade high-density support |
| |
Fully managed via Omada SDN |
| Capacity & Clients |
| |
Client Capacity: |
| |
2.4 GHz: up to 128 devices |
| |
5 GHz: up to 128 devices |
| |
6 GHz: up to 128 devices |
| |
Designed for high-density enterprise environments |
| |
Supports 250+ simultaneous clients (real-world mixed usage) |
| Hardware & Ports |
| |
Port: 1× 2.5 Gigabit Ethernet (RJ45) |
| |
PoE Support: 802.3at PoE+ |
| |
Power: PoE or adapter (depending on deployment) |
| Key advantage: |
| |
2.5G uplink ensures full WiFi 7 throughput without bottleneck |
| Antennas |
| |
Internal omni-directional antennas |
| |
2.4 GHz: 2 × 4 dBi |
| |
5 GHz: 2 × 5 dBi |
| |
6 GHz: 2 × 5 dBi |
| Physical Design |
| |
Ceiling-mount ultra-slim design |
| |
Diameter approx. 220 mm |
| |
Thickness ~32.5 mm |
| |
Minimalist white enterprise design |
| |
Suitable for indoor commercial environments |
| Security Features |
| |
WPA / WPA2 / WPA3 (Personal & Enterprise) |
| |
802.1X authentication |
| |
Captive portal support |
| |
VLAN segmentation |
| |
MAC filtering (up to 4000 entries) |
| |
Rogue AP detection |
| |
Client isolation |
| Network & Wireless Features |
| |
Multiple SSIDs (up to 24 total) |
| |
Band steering |
| |
Airtime fairness |
| |
Load balancing |
| |
Rate limiting |
| |
Seamless roaming (802.11k/v/r) |
| |
Omada Mesh support |
| Management (Omada SDN) |
| |
Centralized cloud management (Omada SDN) |
| |
Hardware controller (OC200 / OC300) |
| |
Software / Cloud controller support |
| |
Mobile app management |
| Environment |
| |
Indoor enterprise deployment |
| |
Wide temperature tolerance (commercial grade) |
| |
Designed for continuous operation |
