| Part No : |
90NB14P3-M006J0 |
| Sales Model Name : |
M5406WA-OLEDR9L31WB |
| EAN Code : |
4.71E+12 |
| UPC Code : |
1.97E+11 |
| WEEE : |
1.3 |
| BASE UNIT : |
VSNB14P3-BU2000 |
| Marketing Name : |

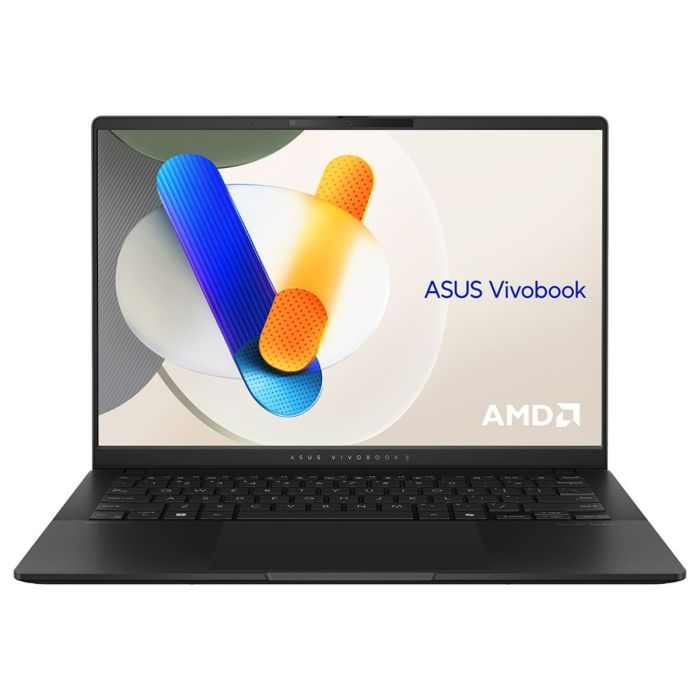

ASUS Vivobook S 14 |
| Operating System : |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| Office : |
1-month trial for new Microsoft 365 customers. Credit card required. |
| LCD cover-material : |
Aluminum |
| LCD cover-color : |
Neutral Black |
| Top case-material : |
Aluminum |
| Top case-color : |
Neutral Black |
| Keyboard color : |
Black |
| Bottom case-material : |
Aluminum |
| Bottom case-color : |
Neutral Black |
| Military grade : |
US MIL-STD 810H military-grade standard |
| Touch Panel : |
Non-touch screen |
| Panel Size : |
14.0-inch |
| Resolution : |
WUXGA (1920 x 1200) OLED 16:10 aspect ratio |
| Refresh rate : |
60Hz refresh rate |
| Brightness : |
400nits |
| Peak Brightness : |
600nits HDR peak brightness |
| Color gamut : |
100% DCI-P3 color gamut |
| Contrast ratio : |
1,000,000:1 |
| VESA CERTIFIED Display HDR : |
VESA CERTIFIED Display HDR True Black 600 |
| Color depth : |
1.07 billion colors |
| Pantone : |
PANTONE Validated |
| Glare : |
Glossy display |
| Low blue light : |
65% less harmful blue light |
| Screen-to-body ratio : |
87% |
| Processor : |
AMD Ryzen™ AI 9 365 Processor 2.0GHz (34MB Cache, up to 5.0GHz, 10 cores, 20 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset : |
N/A |
| Discrete/Share : |
Share |
| Intergrated GPU : |
AMD Radeon™ 880M Graphics |
| Neural Processor : |
AMD XDNA™ NPU up to 50TOPS |
| Expansion Slot(includes used) : |
1x M.2 2280 PCIe 4.0x4 |
| On board memory : |
32GB LPDDR5X on board |
| Total System Memory : |
LPDDR5X 32GB |
| How to upgrade memory : |
Not Available |
| Storage : |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera : |
FHD camera with IR function to support Windows Hello ; With privacy shutter |
| on board Wireless : |
Wi-Fi 6E(802.11ax) (Dual band) 2*2 + Bluetooth® 5.3 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type : |
Backlit Chiclet Keyboard 1-Zone RGB without Num-key |
| |
With Copilot key |
| |
*Copilot in Windows (in preview) is rolling out gradually within the latest update to Windows 11 in select global markets. Timing of availability varies by device and market. Learn more: https://www.microsoft.com/en-us/windows/copilot-ai-features?r=1#faq |
| Touchpad : |
Touchpad |
| FingerPrint : |
N/A |
| I/O ports : |
1x USB 3.2 Gen 1 Type-C with support for display / power delivery (data speed up to 5Gbps) |
| |
1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) |
| |
2x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps) |
| |
1x HDMI 2.1 TMDS |
| |
1x 3.5mm Combo Audio Jack |
| |
Micro SD card reader |
| Audio : |
Smart Amp Technology |
| |
Built-in speaker |
| |
Built-in array microphone |
| |
harman/kardon (Mainstream) |
| Voice control : |
with Cortana support |
| Power : |
TYPE-C, 90W AC Adapter, Output 20V DC, 4.5A, 90W, Input: 100~240V AC 50/60Hz universal |
| Battery : |
75WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery : |
No |
| Dimension (W x H x D) : |
31.05 x 22.19 x 1.39 ~ 1.59 cm (12.22" x 8.74" x 0.55" ~ 0.63") |
| Weight (with Battery) : |
1.30 kg (2.87 lbs) |
| Weight (without Battery) : |
1.10 kg (2.43 lbs) |
| Antivirus : |
McAfee® 30 days free trial |
| Security : |
IR webcam with Windows Hello support |
| |
McAfee® |
| |
Microsoft Pluton security processor |
| |
Trusted Platform Module (Firmware TPM) |
| MyASUS feature : |
System diagnosis |
| |
Battery health charging |
| |
Fan Profile |
| |
Splendid |
| |
Function key lock |
| |
WiFi SmartConnect |
| |
Link to MyASUS |
| |
TaskFirst |
| |
Live update |
| |
ASUS OLED Care |
| |
AI Noise Canceling |
| Built-in Apps : |
MyASUS |
| |
ScreenXpert |
| |
GlideX |
| Adobe Creative Cloud Hard Bundle : |
One-Month Membership of Adobe Creative Cloud All Apps, Individual. |
| |
The redemption duration from September 15, 2021 to August 31, 2025. |
| Ecolabels & Compliances : |
EPEAT Silver |
| |
Energy star 8.0 |
| |
RoHS |
| |
REACH |
| Reparability Index (for France) : |
?.? |
