| Part No |
90NB15K1-M00PZ0 |
| Sales Model Name |
H7606WP-SR221W |
| EAN Code |
4711636533423 |
| UPC Code |
199291533424 |
| WEEE |
1.681 |
| BASE UNIT |
VSNB15K1-BU4000 |
| |
|
| Marketing Name |

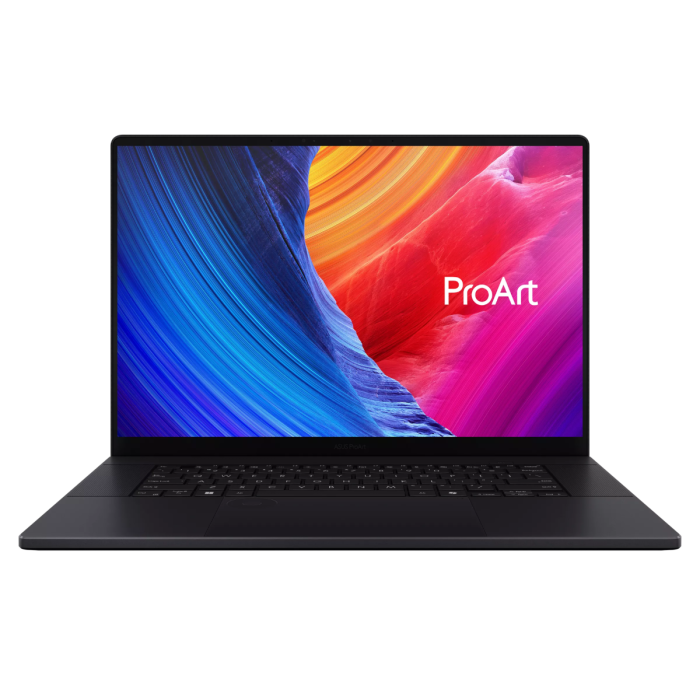

ProArt P16 |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Nano Black |
| Top case-material |
Aluminum |
| Top case-color |
Nano Black |
| Keyboard color |
Black |
| Bottom case-material |
Aluminum |
| Bottom case-color |
Nano Black |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Touch screen |
| Panel Size |
16.0-inch |
| Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
120Hz |
| Brightness |
500nits |
| Peak Brightness |
1000nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Gamut mapping |
Yes |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 500 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Surface texture of display |
Anti-glare and low-reflection(AGLR) display |
| Low blue light |
70% less harmful blue light |
| TÜV Rheinland-certified |
TÜV Rheinland-certified |
| SGS Eye Care Display |
SGS Eye Care Display |
| Screen-to-body ratio |
88% |
| Stylus support |
With stylus support |
| Processor |
AMD Ryzen™ AI 9 HX 370 Processor 2.0GHz (36MB Cache, up to 5.1GHz, 12 cores, 24 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset |
N/A |
| Discrete/Share |
Discrete |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Graphics |
NVIDIA® GeForce RTX™ 5070 Laptop GPU |
| Graphic Memory |
8GB GDDR7 |
| Neural Processor |
AMD XDNA™ NPU up to 50TOPS |
| Expansion Slot(includes used) |
1x M.2 2280 PCIe 4.0x4 + 1x M.2 2280 PCIe 4.0x2 |
| On board memory |
64GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 64GB |
| Storage |
2TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Backlit Chiclet Keyboard |
| Touchpad |
Seamless touchpad support DialPad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps) 2x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 1x HDMI 2.1 FRL 1x 3.5mm Combo Audio Jack 1x DC-in SD Express 7.0 card reader |
| Audio |
Smart Amp Technology Built-in speaker Built-in array microphone |
| Voice control |
N/A |
| Charger included |
Included |
| Power |
Rectangle Conn, 200W AC Adapter, Output: 20V DC, 10A, 200W, Input: 100~240V AC, 50/60Hz universal |
| Required charging power |
Min: 45W Max: 100W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Battery |
90WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Weight (with Battery) |
1.85 kg (4.08 lbs) |
| Weight (without Battery) |
1.80 kg (3.97 lbs) |
| Dimension (W x H x D) |
35.49 x 24.69 x 1.49 ~ 1.73 cm (13.97" x 9.72" x 0.59" ~ 0.68") |
| Built-in Apps |
ASUS Recovery MuseTree StoryCube CapCut MyASUS ProArt Creator Hub ScreenXpert GlideX |
| MyASUS feature |
System diagnosis Battery health charging Fan Profile Splendid Function key lock WiFi SmartConnect TaskFirst Live update ASUS OLED Care AI Noise Canceling |
| Exclusive subscription offers |
6-Month GoPro Premium+ Subscription 3-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. 3-Month Goodnotes Essential Subscription 6-Month Dropbox 500GB Subscription 1-Year ASUS Secure Auto-Backup 200GB Subscription |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
N/A |
| Security |
IR webcam with Windows Hello support Microsoft Pluton security processor Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
Energy star 8.0 RoHS REACH |
| Reparability Index (for France) |
9.4 |
| Reparability Index (for BNL) |
9.5 |
