| Part No |
90NB1861-M001D0 |
| Sales Model Name |
HT7407NA-SN036W |
| EAN Code |
4711636544658 |
| UPC Code |
199291544659 |
| WEEE |
0.62 |
| BASE UNIT |
VSNB1861-BU1000 |
| Marketing Name |

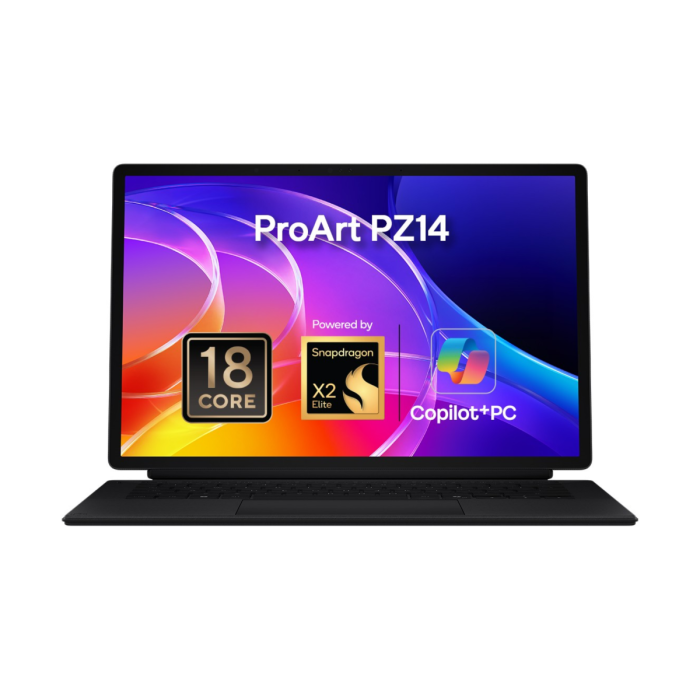

ProArt PZ14 |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Nano Black |
| Top case-material |
Aluminum |
| Top case-color |
Nano Black |
| Keyboard color |
Black |
| Bottom case-material |
N/A |
| Bottom case-color |
N/A |
| Military grade |
N/A |
| Touch Panel |
Touch screen |
| Panel Size |
14.0-inch |
| Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
144Hz |
| Panel tech |
FOLED |
| Brightness |
500nits |
| Peak brightness |
1000nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 1000 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Surface texture of display |
Anti-reflection(AR) display |
| Low blue light |
70% less harmful blue light |
| TÜV Rheinland-certified |
TÜV Rheinland-certified |
| Screen-to-body ratio |
88% |
| Stylus support |
With stylus support |
| Processor |
Snapdragon® X2 Elite (18-core) X2E88100 (53MB Cache, Single-core Boost Fequency 4.7GHz, Multi-core max up to 4.0GHz, 18 cores, 18 Threads, Memory Bandwith 152GB/s) |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
Qualcomm® Adreno™ GPU |
| Neural Processor |
Qualcomm® Hexagon™ NPU up to 80TOPS |
| Expansion Slot(includes used) |
1x M.2 2230 PCIe 4.0x4 |
| On board memory |
16GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 16GB |
| How to upgrade memory |
Not Available |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
8.0M camera with IR function to support Windows Hello |
| Rear-facing camera |
13.0M Ultra HD (4K) rear-facing camera |
| on board Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Backlit Chiclet Soft Keyboard With Copilot key |
| Touchpad |
Precision touchpad |
| FingerPrint |
N/A |
| I/O ports |
2x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) N/A SD Express 7.0 card reader |
| Audio |
Smart Amp Technology Built-in speaker Built-in array microphone |
| Voice control |
N/A |
| Charger included |
Included |
| Power |
TYPE-C, 68W AC Adapter, Output: 20V DC, 3.4A, 68W, Input: 100~240V AC 50/60Hz universal |
| Required charging power |
Min: 45W Max: 100W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Battery |
75WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
Yes |
| Weight (with Battery) |
0.79 kg (1.74 lbs) |
| Weight (without Battery) |
0.79 kg (1.74 lbs) |
| Dimension (W x H x D) |
31.96 x 20.64 x 0.90 ~ 0.90 cm (12.58" x 8.13" x 0.35" ~ 0.35") |
| Built-in Apps |
StoryCube MuseTree MyASUS ProArt Creator Hub ScreenXpert GlideX |
| MyASUS feature |
System diagnosis Battery health charging Fan Profile Splendid Function key lock WiFi SmartConnect TaskFirst Live update ASUS OLED Care AI Noise Canceling AdaptiveLock |
| Exclusive subscription offers |
6-Month GoPro Premium+ Subscription 3-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2026. 3-Month Goodnotes Essential Subscription 6-Month Dropbox 500GB Subscription 1-Year ASUS Secure Auto-Backup 200GB Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
N/A |
| Security |
IR webcam with Windows Hello support BIOS Booting User Password Protection Microsoft Pluton security processor BIOS setup user password Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
N/A |
| Included in the Box |
Stylus without wireless charger (ASUS Pen SA205H-MPP2.6 support) Stylus (ASUS Pen SA205H-MPP2.6 support) Sleeve Stand |
| Reparability Index (for France) |
9.3 |
