| Part No |
90NB17R1-M007E0 |
| Sales Model Name |
UM3406GA-QD031W |
| EAN Code |
4711636330251 |
| UPC Code |
199291330252 |
| WEEE |
1 |
| BASE UNIT |
VSNB17R1-BU0100 |
| Marketing Name |

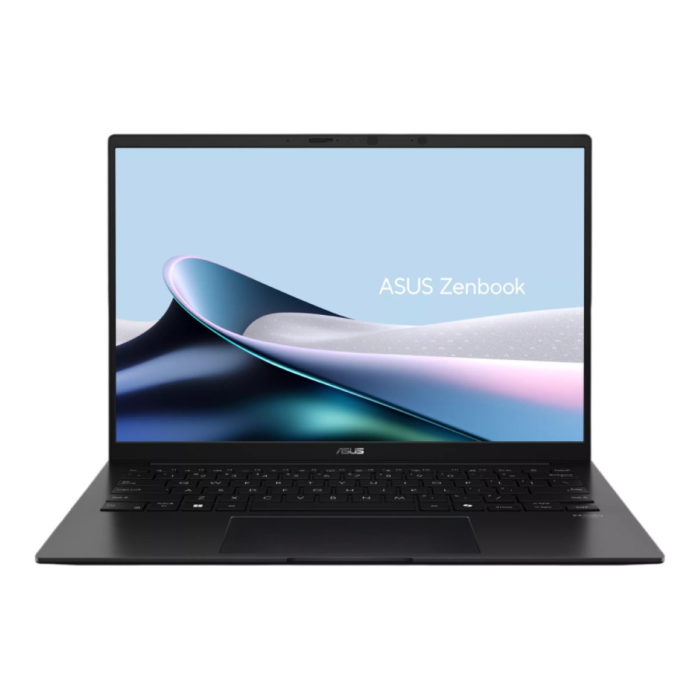

ASUS Zenbook 14 |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Aluminum |
| LCD cover-color |
Jade Black |
| Top case-material |
Aluminum |
| Top case-color |
Jade Black |
| Keyboard color |
Black |
| Bottom case-material |
Aluminum |
| Bottom case-color |
Jade Black |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Non-touch screen |
| Panel Size |
14.0-inch |
| Resolution |
WUXGA (1920 x 1200) OLED 16:10 aspect ratio |
| LED Backlit Unit |
LED Backlit |
| Response time |
0.2ms response time |
| Refresh rate |
60Hz |
| Brightness |
400nits |
| Peak Brightness |
600nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 600 |
| Color depth |
1.07 billion colors |
| Surface texture of display |
Anti-glare and low-reflection(AGLR) display |
| Low blue light |
70% less harmful blue light |
| TÜV Rheinland-certified |
TÜV Rheinland-certified |
| SGS Eye Care Display |
SGS Eye Care Display |
| Screen-to-body ratio |
87% |
| Processor |
AMD Ryzen™ AI 7 445 Processor 2.0GHz (14MB Cache, up to 4.6GHz, 6 cores, 12 Threads); AMD XDNA™ NPU up to 50TOPS |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
AMD Radeon™ Graphics |
| Neural Processor |
AMD XDNA™ NPU up to 50TOPS |
| Expansion Slot(includes used) |
1x M.2 2280 PCIe 4.0x4 |
| On board memory |
32GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 32GB |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello ; With privacy shutter |
| on board Wireless |
Wi-Fi 6E(802.11ax) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Backlit Chiclet Keyboard With Copilot key |
| Touchpad |
Precision touchpad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 3.2 Gen 1 Type-A (data speed up to 5Gbps) 1x USB 4.0 Gen 3 Type-C with support for display / power delivery (data speed up to 40Gbps) 1x USB 3.2 Gen 2 Type-C with support for display / power delivery (data speed up to 10Gbps) 1x HDMI 2.1 TMDS 1x 3.5mm Combo Audio Jack |
| Audio |
Smart Amp Technology Built-in speaker Built-in array microphone |
| Voice control |
N/A |
| Charger included |
Included |
| Power |
TYPE-C, 68W AC Adapter, Output: 20V DC, 3.4A, 68W, Input: 100~240V AC 50/60Hz universal |
| Required charging power |
Min: 45W Max: 68W *The indicated wattage is for demonstrating the system’s support capability as required by EU regulations. For optimal system performance, please use the standard-wattage adapter or higher. |
| Battery |
75WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Weight (with Battery) |
1.20 kg (2.65 lbs) |
| Weight (without Battery) |
0.94 kg (2.07 lbs) |
| Dimension (W x H x D) |
31.24 x 22.01 x 1.49 ~ 1.49 cm (12.30" x 8.67" x 0.59" ~ 0.59") |
| Built-in Apps |
StoryCube ASUS Recovery MyASUS ScreenXpert GlideX |
| MyASUS feature |
System diagnosis Battery health charging Fan Profile Splendid Function key lock WiFi SmartConnect TaskFirst Live update ASUS OLED Care AI Noise Canceling |
| Exclusive subscription offers |
3-Month GoPro Premium+ Subscription 1-Month Membership of Adobe Creative Cloud All Apps, Individual. The redemption duration from September 15, 2021 to August 31, 2026. 3-Month Goodnotes Essential Subscription 6-Month Dropbox 500GB Subscription 1-Year ASUS Secure Auto-Backup 200GB Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
McAfee® 30 days free trial |
| Security |
IR webcam with Windows Hello support McAfee® BIOS Booting User Password Protection Microsoft Pluton security processor BIOS setup user password Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
RoHS REACH |
| Reparability Index (for France) |
9.3 |
