| Part No |
90NB16V1-M00W40 |
| Sales Model Name |
UX8407AA-U9321W |
| EAN Code |
4711636637015 |
| UPC Code |
199291637016 |
| WEEE |
1.06 |
| BASE UNIT |
VSNB16V1-BU1000 |
| Marketing Name |

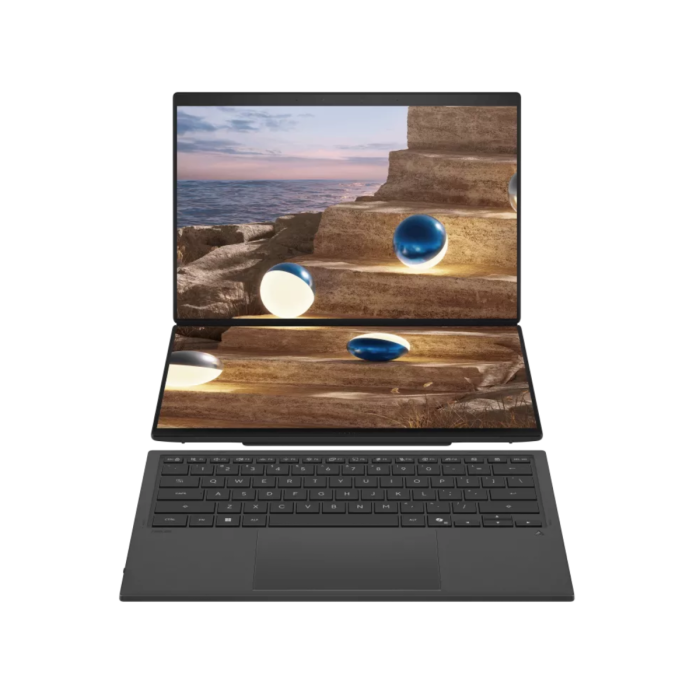

ASUS Zenbook Duo |
| Operating System |
Windows 11 Home - ASUS recommends Windows 11 Pro for business |
| LCD cover-material |
Ceraluminum™ (ceramized aluminum‑magnesium alloy) |
| LCD cover-color |
Moher Gray |
| Top case-material |
Ceraluminum™ (ceramized aluminum‑magnesium alloy) |
| Top case-color |
Moher Gray |
| Keyboard color |
Moher Gray |
| Bottom case-material |
Ceraluminum™ (ceramized aluminum‑magnesium alloy) |
| Bottom case-color |
Moher Gray |
| Military grade |
US MIL-STD 810H military-grade standard |
| Touch Panel |
Touch screen |
| Panel Size |
14.0-inch |
| Resolution |
3K (2880 x 1800) OLED 16:10 aspect ratio |
| Response time |
0.2ms response time |
| Refresh rate |
144Hz |
| Brightness |
500nits |
| Peak Brightness |
1000nits HDR peak brightness |
| Color gamut |
100% DCI-P3 color gamut |
| Gamut mapping |
Yes |
| Contrast ratio |
1,000,000:1 |
| VESA CERTIFIED Display HDR |
VESA CERTIFIED Display HDR True Black 1000 |
| Color depth |
1.07 billion colors |
| Pantone |
PANTONE Validated |
| Surface texture of display |
Anti-reflection(AR) display |
| Low blue light |
70% less harmful blue light |
| Screen-to-body ratio |
93% |
| Stylus support |
With stylus support |
| Processor |
Intel® Core™ Ultra 9 Processor 386H 2.1 GHz (18MB Cache, up to 4.9 GHz, 16 cores, 16 Threads); Intel® NPU up to 50TOPS |
| Chipset |
N/A |
| Discrete/Share |
Share |
| Intergrated GPU |
Intel® Graphics |
| Neural Processor |
Intel® NPU up to 50TOPS |
| Expansion Slot(includes used) |
1x M.2 2280 PCIe 4.0x4 |
| On board memory |
32GB LPDDR5X on board |
| Total System Memory |
LPDDR5X 32GB |
| Storage |
1TB M.2 NVMe™ PCIe® 4.0 SSD |
| Front-facing camera |
FHD camera with IR function to support Windows Hello |
| Wireless |
Wi-Fi 7(802.11be) (Triple band) 2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| on board Wireless |
Wi-Fi 7(802.11be) (Tri-band)2*2 + Bluetooth® 5.4 Wireless Card (*Bluetooth® version may change with OS version different.) |
| Keyboard type |
Backlit Chiclet Soft Keyboard |
| Touchpad |
Precision touchpad |
| FingerPrint |
N/A |
| I/O ports |
1x USB 3.2 Gen 2 Type-A (data speed up to 10Gbps) 2x Thunderbolt™ 4 with support for display / power delivery (data speed up to 40Gbps) 1x HDMI 2.1 FRL 1x 3.5mm Combo Audio Jack |
| Audio |
Smart Amp Technology Built-in speaker Built-in array microphone |
| Voice control |
with Cortana support |
| Charger included |
Included |
| Power |
TYPE-C, 100W AC Adapter, Output 20V DC, 5A, 100W, Input: 100~240V AC 50/60Hz universal |
| Required charging power |
Min: 45W Max: 100W |
| Battery |
99WHrs, 4S1P, 4-cell Li-ion |
| Replaceable Battery |
No |
| Weight (with Battery) |
1.65 kg (3.64 lbs) |
| Weight (without Battery) |
1.31 kg (2.89 lbs) |
| Dimension (W x H x D) |
31.01 x 20.86 x 1.96 ~ 2.34 cm (12.21" x 8.21" x 0.77" ~ 0.92") |
| Dimension for Keyboard |
30.63 x 20.37 x 0.51 ~ 0.53 cm (12.06" x 8.02" x 0.20" ~ 0.21") |
| Built-in Apps |
ASUS Recovery MyASUS ScreenXpert GlideX |
| MyASUS feature |
System diagnosis Battery health charging Fan Profile Splendid Tru2Life Function key lock WiFi SmartConnect TaskFirst Live update ASUS OLED Care AI Noise Canceling |
| Exclusive subscription offers |
3-Month GoPro Premium+ Subscription 1-Month Membership of Adobe Creative Cloud All Apps, Individual.
The redemption duration from September 15, 2021 to August 31, 2026. 3-Month Goodnotes Essential Subscription 6-Month Dropbox 500GB Subscription 1-Year ASUS Secure Auto-Backup 200GB Subscription *Available in eligible markets only. Eligibility varies by region, device, and time. Terms and conditions apply. See promotion pages for details. |
| Office |
1-month trial for new Microsoft 365 customers. Credit card required. |
| Antivirus |
N/A |
| Security |
IR webcam with Windows Hello support Microsoft Pluton security processor Trusted Platform Module (Firmware TPM) |
| Ecolabels & Compliances |
Energy star RoHS |
| Included in the Box |
Stylus with wireless charger (ASUS Pen SA205H-MPP2.6 support) Sleeve |
| Reparability Index (for France) |
8.4 |
