Lennox 1.5TR Cooling Only Inverter AC

No Related Posts

More Information

Product Name

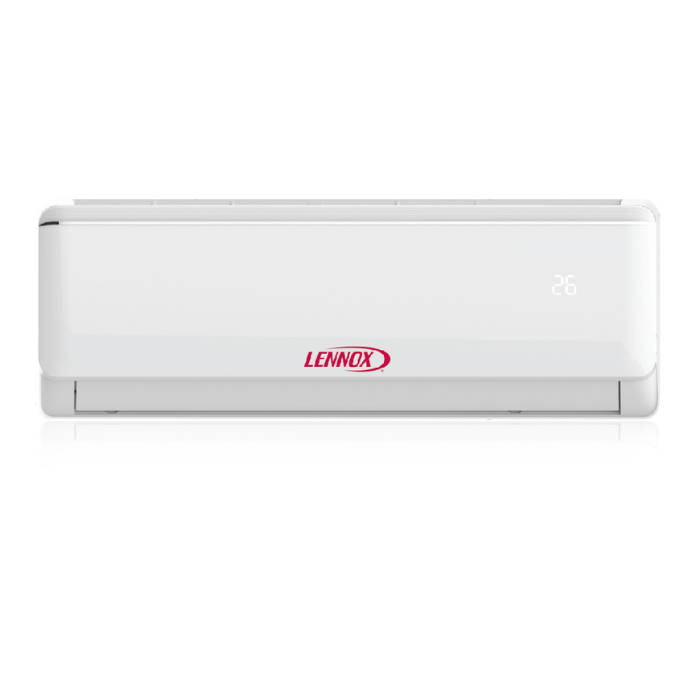

Lennox 1.5 TR- Cooling Only Wall Split AC Inverter

Price

QAR 1,699.00

Featured Attribute Grid

1.5 ton,Split AC,No

Department:

Home Appliances

Category:

Air Conditioners

Brand:

Lennox

Product Type:

Split AC

Tonnage:

1.5 ton

Cooling Capacity:

17400 BTU

Features & Specifications:

Model No.	HLXACLXTWS18I
Type	cooling only
Climate type	T3
Power supply	220~240V / 50Hz
Voltage Range	V	198~242
Refrigerant	kg	R410A/0.9kg
		6.00
Cooling T1
Rated capacity	Btu/h	18400(4436-19790)
Rated capacity	W	5393(1300-5800)
EER	Btu/h/W;	11.50
EER	W/W	3.37
Rated power input	W	1600(270-2600)
Rated current	A	8.7(1.2-13.0)
Max power input	W	2600
Max current	A	13.0
Cooling T3
Rated capacity	Btu/h	17400(5118-18766)
Rated capacity	W	5100(1500-5500)
EER	Btu/h/W;	9.01
EER	W/W	2.64
Rated power input	W	1931(270-2600)
Rated current	A	10.5(1.2-13.0)
Max power input	W	2600
Max current	A	13.0
Heating
Rated capacity	W	/
COP	W/W	/
Rated power input	W	/
Rated current	A	/
Max power input	W	/
Max current	A	/
Indoor air volume(Cooling/Heating)	m³/h	1050
Annual energy consumption	kwh/year	4320
Pressure
High(DP)	MPa	4.5
Low(SP)	MPa	1.9
Indoor noise level at cooling
Super	dB(A)	50
High	dB(A)	48
Med.	dB(A)	44
Low	dB(A)	39
Quite	dB(A)	35
Outdoor noise level	dB(A)	57
Net dimensions (W x Dx H)	Indoor	1100×333×222
	Outdoor	853×349×602
Packing dimensions (W x D x H)	Indoor	1165×405×295
	Outdoor （without piping）	890×385×628
	Outdoor （with piping）	890×385×628
Net weight
Indoor	Kg	14
Outdoor	Kg	29
Gross weight
Indoor	Kg	17
Outdoor （without piping）	Kg	31
Outdoor （with piping）	Kg	32
Stuffing qty	40'HQ （without piping）	185
	40'HQ （with piping）	185
Moisture removal	Liters/h	1.8
Compressor	Model	C-1RZ140H3CBF
	Type	Rotary
	Brand	SANYO
Evaporator	Hydrophilic & Louver Fin; Innergroover tube type φ7
Condenser	Louver or Corrugated Fin; Innergroover tube type φ5
Expansion device	Capillary tube
Defrosting system	Microcomputer controlled reverse system
Fan System
Indoor fan type	Cross flow
Indoor fan motor	model	22001-000240 DC
	brand	WEILING/Tongde/Broad-ocean
Indoor fan speed H/M/L
Cooling	rpm	1220/1130/990/850/750
Heating	rpm	/
Dry	rpm	850
Sleep	rpm	750
Indoor coil
a.Number of rows	2
b.Tube pitch(a)x row pitch(b)	mm	21×12.7
c.Fin spacing	mm	1.3
e.Tube outside dia.and type	mm	Φ7,innergroove tube
f.Coil length x height x width	mm	843×357×25.4
g.Number of circuits	4 in 4 out
Outdoor fan type	Propeller
Outdoor fan motor	model	22001-000493 DC
	brand	WEILING/Broad-ocean/Tongde/LT
Outdoor fan speed	rpm	1000
Outdoor coil
a.Number of rows		2
b.Tube pitch(a)x row pitch(b)	mm	19.05×11.6
c.Fin spacing	mm	1.2
e.Tube outside dia.and type	mm	Φ5,innergroove tube
f.Coil length x height x width	mm	843×566×23.2
g.Number of circuits	4 in 4 out
Connections
Connecting Pipe
Gas	Inches	φ12(1/2")
Liquid	Inches	Φ6(1/4'')
Connecting Wiring	Size x Core number	4×1.5
DraiN.Age Pipe		O.D 16mm
Suitable area	m²	20~35
