Features & Specifications:

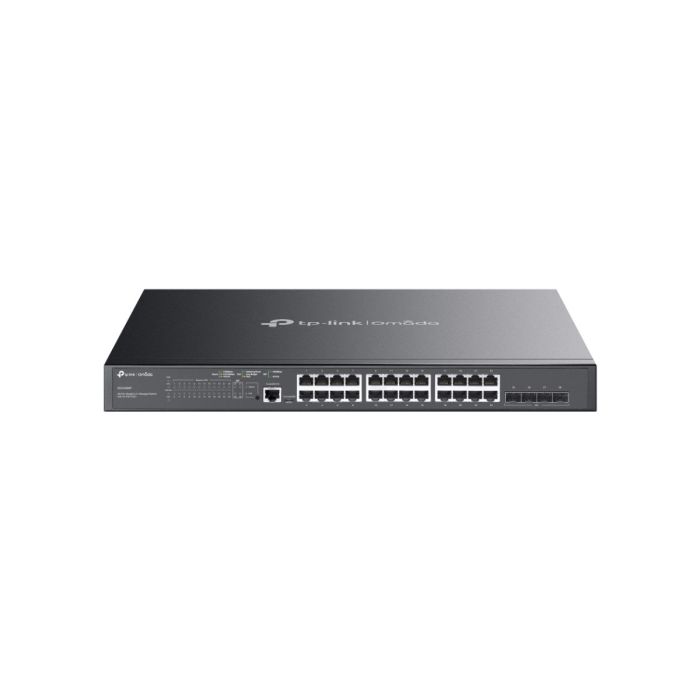

TP-Link SG3428MP — Full Specifications
JetStream 28-Port Gigabit L2+ Managed Switch with 24-Port PoE+
Hardware Overview
Total Ports:
24× 10/100/1000 Mbps Gigabit RJ45 (PoE+)
4× Gigabit SFP slots
Console Ports:
1× RJ45 console
1× Micro-USB console
Switch Type: L2+ Managed (Omada SDN supported)
Mounting: Rackmount
Cooling: 2× internal fans
Power Supply: 100–240V AC, 50/60Hz
Key Highlights
24× PoE+ ports with high 384W power budget
4× SFP uplinks for fiber connectivity
Advanced L2+ & L3 features
Omada SDN cloud management
Built for enterprise, CCTV, and WiFi deployments
PoE Specifications
PoE Ports: 24× PoE+ (RJ45)
PoE Standard: IEEE 802.3af / 802.3at
Max Power per Port: 30W
Total PoE Budget: 384W
PoE Capabilities
Supports IP cameras, access points, VoIP phones
Centralized power + data over single cable
Ideal for large deployments (CCTV / enterprise WiFi)
Performance
Switching Capacity: 56 Gbps
Packet Forwarding Rate: 41.66 Mpps
MAC Address Table: 8K–16K (version dependent)
Packet Buffer: 4.1 Mbit
Jumbo Frame: 9 KB
Network Features
L2 / L2+ Features
VLAN (802.1Q)
Link Aggregation (LACP)
Spanning Tree (STP / RSTP / MSTP)
Port Mirroring
Loopback Detection
LLDP / LLDP-MED
L3 Features
Static routing (up to 48 routes)
IPv4 / IPv6 interfaces
ARP management
Multicast
IGMP Snooping (optimized for video streaming)
Security Features
Access Control Lists (ACL)
802.1X authentication
IP-MAC-Port binding
DHCP Snooping
DoS protection
Port security & storm control
