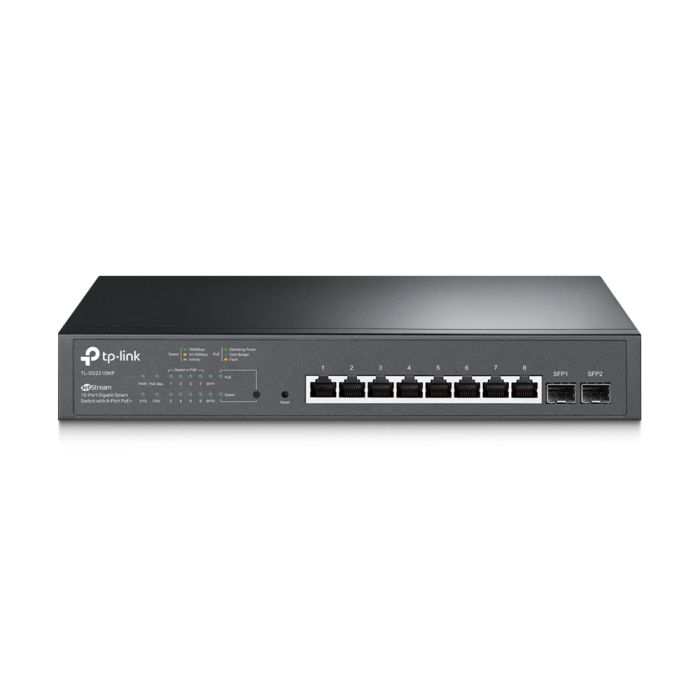

| TP-Link TL-SG2210MP — Full Specifications |
| 10-Port Gigabit Smart Switch with 8-Port PoE+ |
| Hardware Overview |
| |
Total Ports: |
| |
8× 10/100/1000 Mbps Gigabit RJ45 (PoE+) |
| |
2× Gigabit SFP uplink slots |
| |
Switch Type: Smart Managed (JetStream / Omada SDN compatible) |
| |
Mounting: Desktop or 1U rackmount |
| |
Cooling: 1× internal fan |
| |
Chassis: Metal корпус (enterprise-grade) |
| Key Highlights |
| |
10-port Gigabit switch (8 PoE+) |
| |
150W PoE budget (30W per port) |
| |
2× SFP fiber uplinks |
| |
Omada SDN cloud management |
| |
Advanced L2/L2+ features |
| |
Ideal for CCTV, WiFi APs, VoIP networks |
| PoE Specifications |
| |
PoE Standard: IEEE 802.3af / 802.3at (PoE+) |
| |
PoE Ports: 8× PoE+ ports |
| |
Total PoE Budget: 150W |
| |
Max Power per Port: up to 30W per port |
| |
PoE Use Cases |
| |
Wireless access points |
| |
IP cameras (CCTV) |
| |
VoIP phones |
| |
IoT devices |
| Performance |
| |
Switching Capacity: 20 Gbps |
| |
Packet Forwarding Rate: 14.9 Mpps |
| |
MAC Address Table: 8K entries |
| |
Packet Buffer: 4.1 Mbit |
| |
Jumbo Frame Support: 9 KB |
| Network & Switching Features |
| |
L2 / L2+ Features |
| |
VLAN (802.1Q, up to 4K VLANs) |
| |
Link Aggregation (LACP) |
| |
Spanning Tree (STP / RSTP / MSTP) |
| |
Port Mirroring |
| |
Loopback Detection |
| |
LLDP / LLDP-MED |
| |
Multicast |
| |
IGMP Snooping (v1/v2/v3) |
| |
MLD Snooping (IPv6 multicast) |
| |
QoS (Quality of Service) |
| |
802.1p / DSCP priority |
| |
8 priority queues |
| |
Bandwidth control |
| |
Storm control |
| Security Features |
| |
Access Control Lists (ACL) |
| |
802.1X authentication |
| |
Port security |
| |
IP-MAC-Port binding |
| |
DHCP Snooping |
| |
DoS attack prevention |
| Management (Omada SDN) |
| |
Centralized cloud management via Omada |
| |
Hardware controllers (OC200 / OC300) |
| |
Software / cloud controller support |
| |
Web GUI + CLI (Telnet) |
| |
SNMP v1/v2c/v3 |
| |
Zero-Touch Provisioning (ZTP) |
| Advanced Features |
| |
Automatic device discovery |
| |
Batch configuration & firmware upgrade |
| |
Intelligent monitoring & alerts |
| |
Cable diagnostics |
| |
Dual firmware image (backup system) |
| Power & Physical |
| |
Power Supply: 100–240V AC, 50/60Hz |
| |
Max Power Consumption: |
| |
~12W (no PoE load) |
| |
~173W (full PoE load) |
| |
Dimensions: 294 × 180 × 44 mm |
| |
Security Lock: Yes |
| Environment |
| |
Operating Temperature: 0°C to 50°C |
| |
Storage Temperature: -40°C to 70°C |
| |
Humidity: 10–90% non-condensing |
